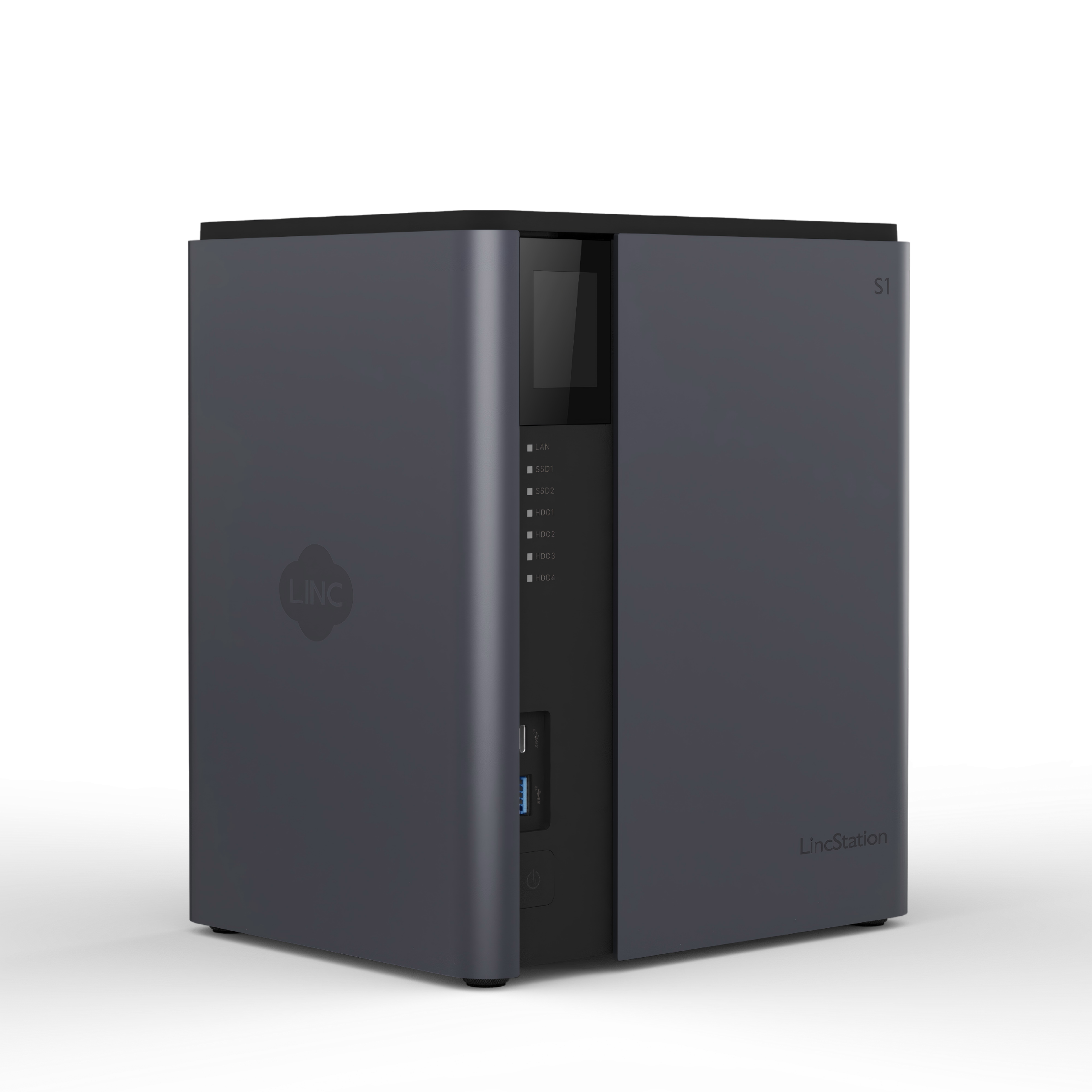

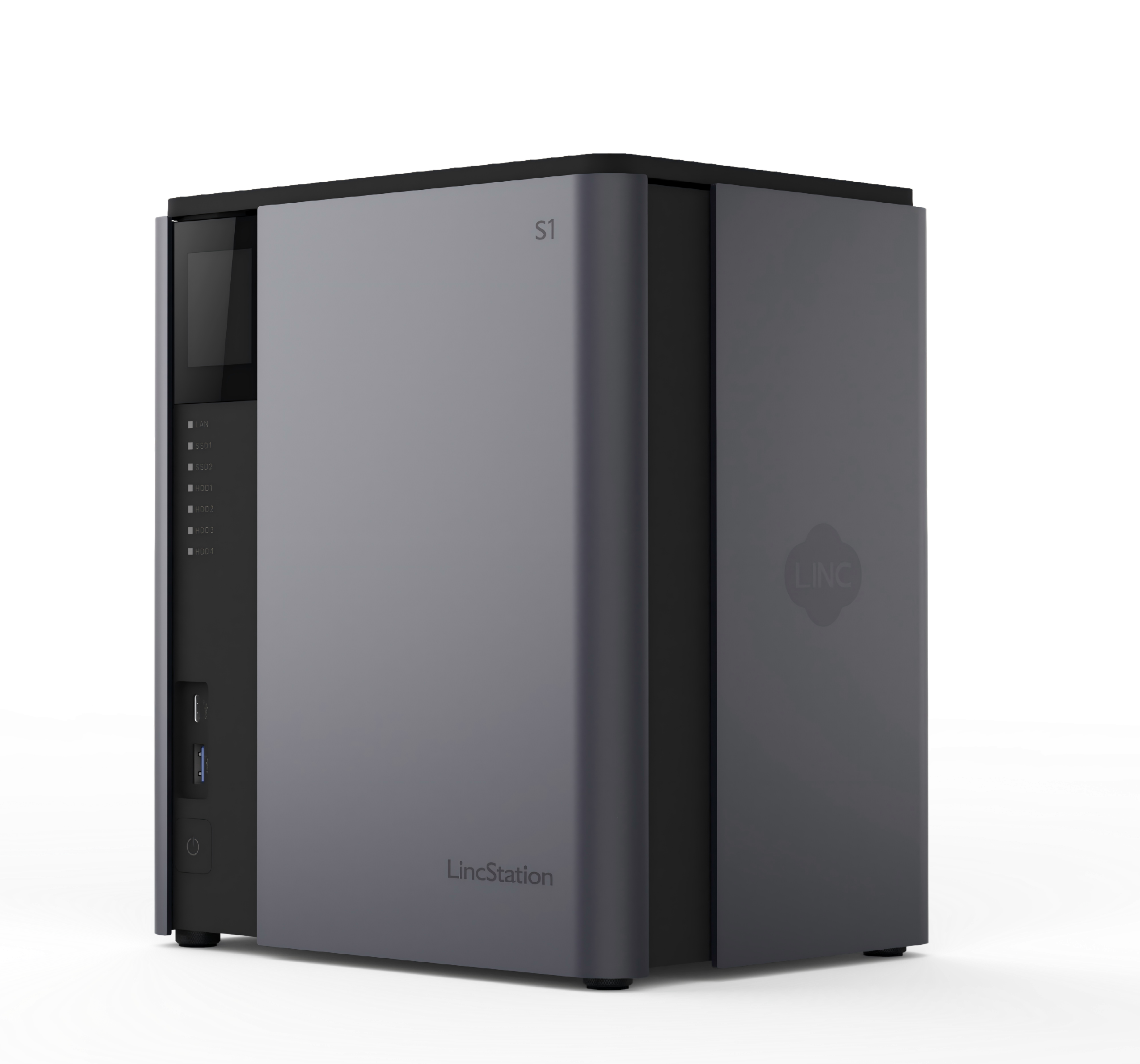

LincStation S1 – Hybrid NAS Powerhouse
A next-generation Network Attached Storage designed for home users, creators, and businesses. Store, stream, and manage everything in one powerful device.
Take Full Control of Your Data
No subscriptions. No limits. Your private cloud starts here.

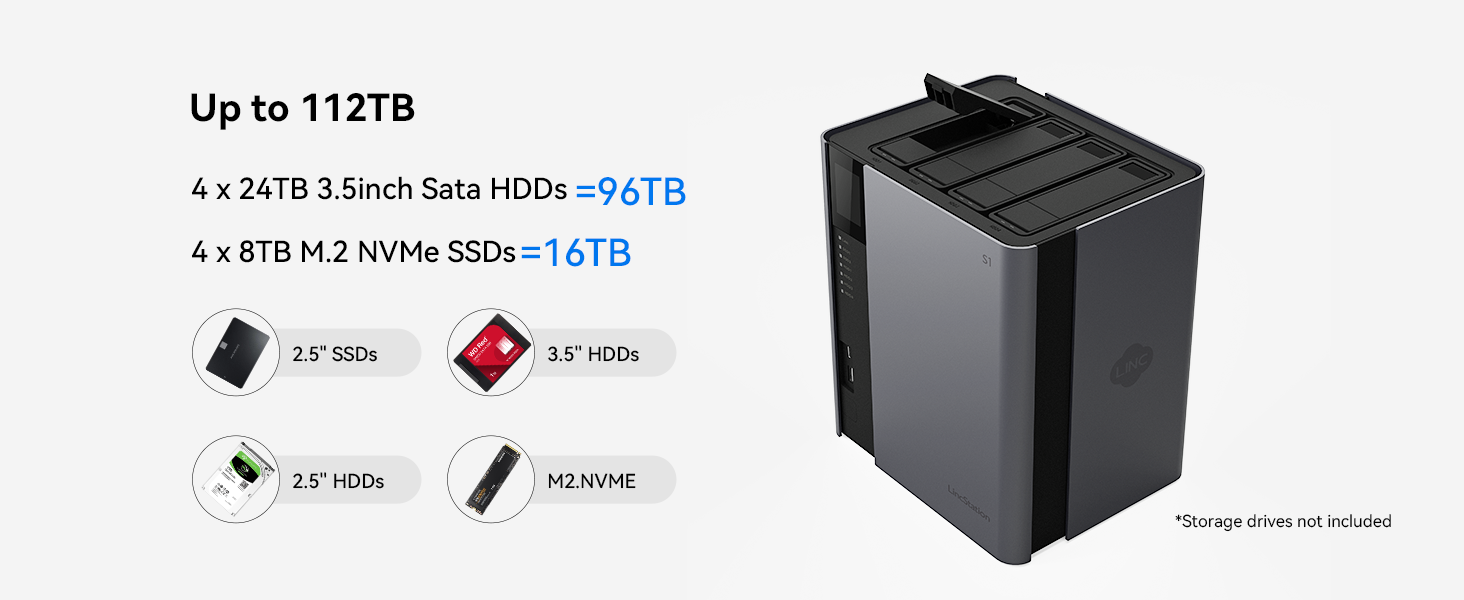

Massive Hybrid Storage
- 4 x SATA HDD/SSD Bays
- 2 x NVMe SSD Slots (Ultra-fast caching)
- Up to 112TB Capacity
Perfect for media libraries, backups, surveillance storage, and business data:
Stop searching. Start finding. Upgrade your surveillance infrastructure with advanced AI analytics. LincStation allows you to execute precise searches—like finding a “man in a blue T-shirt”—instantly, sends you notifications on intrusion detections and more. Save valuable time and resources by moving beyond traditional recording to a system that delivers results at a glance.

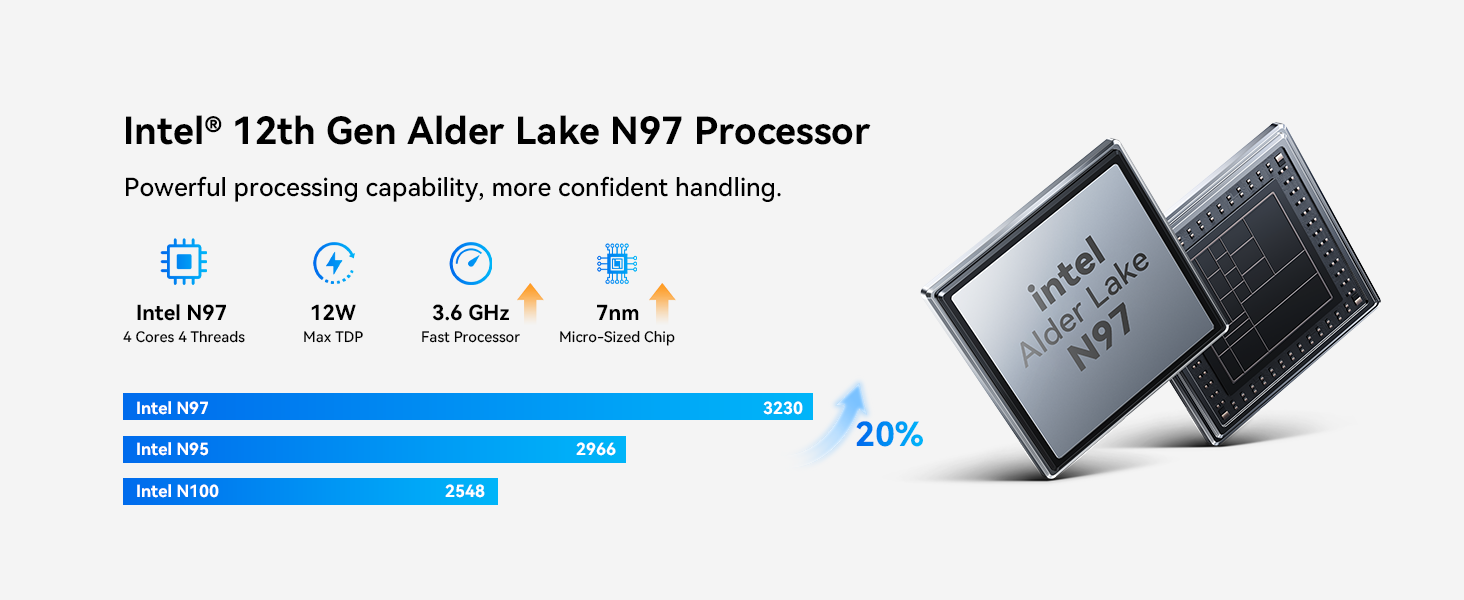

High Performance Engine
- Intel Alder Lake-N N97 CPU
- 8GB DDR5 RAM (Upgradeable)
- Up to 30% faster performance
Run multiple apps, virtual machines, and 4K streaming without lag.

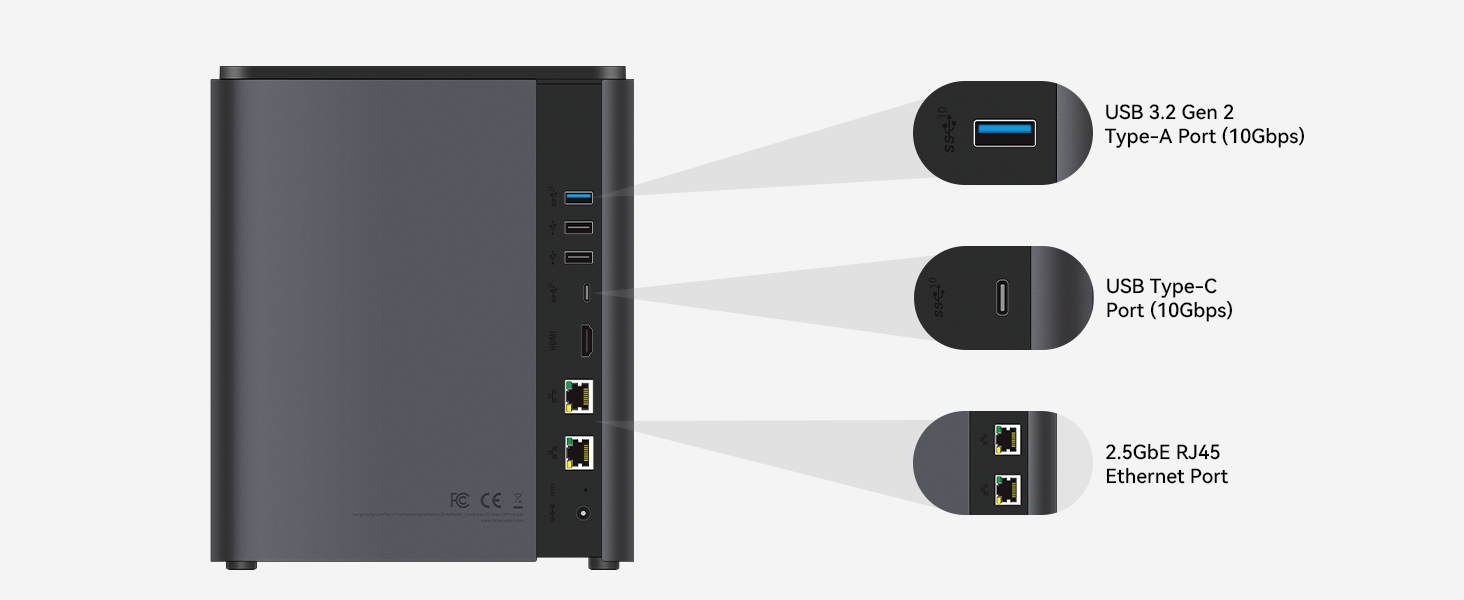

Ultra-Fast Connectivity
- Dual 2.5GbE LAN Ports
- USB 3.2 Gen2 (10Gbps)
- HDMI 2.0 (4K Output)
Lightning-fast transfers and smooth media streaming across all devices.

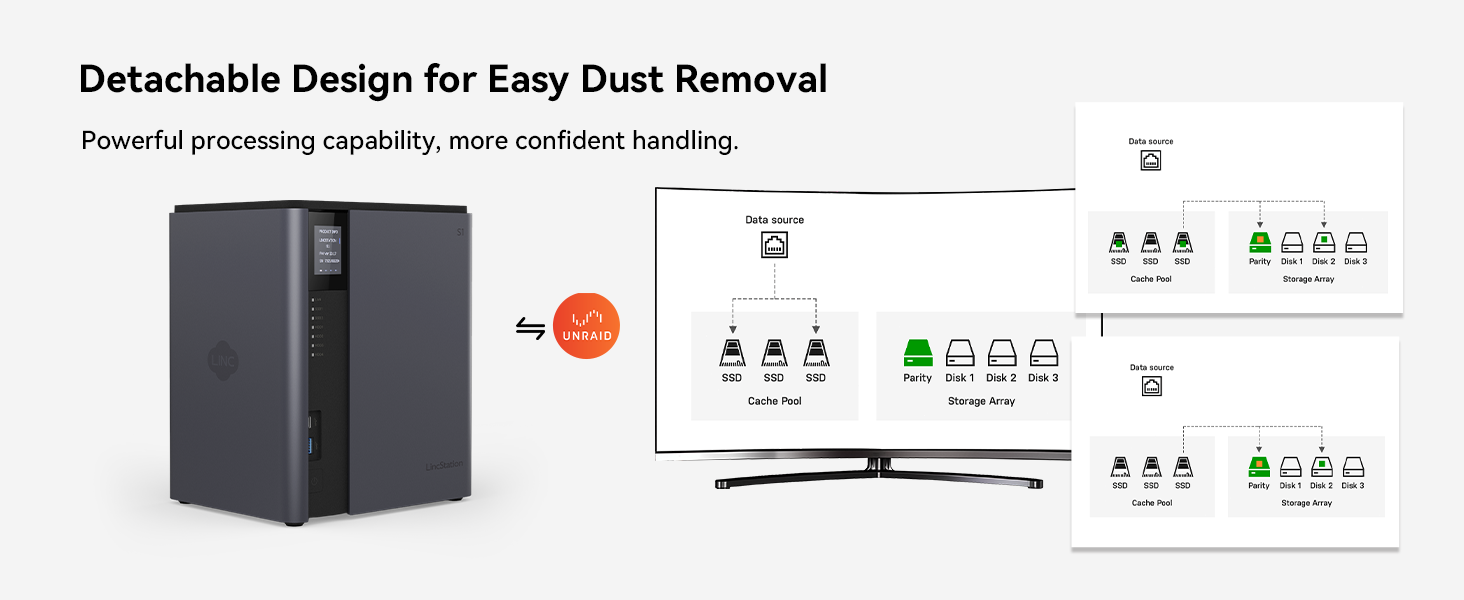

Powered by Unraid OS
Access 2400+ apps including Plex, Docker containers, backup tools, and virtual machines.
Flexible, powerful, and beginner-friendly.
Powered by A5 architecture with 128GB eMMC, this lightweight 1.76 lb unit is made for custom NAS OS installations.
Install the system you want, such as Unraid, TrueNAS, OpenMediaVault, Linux, and more. Small in size, big in possibility.

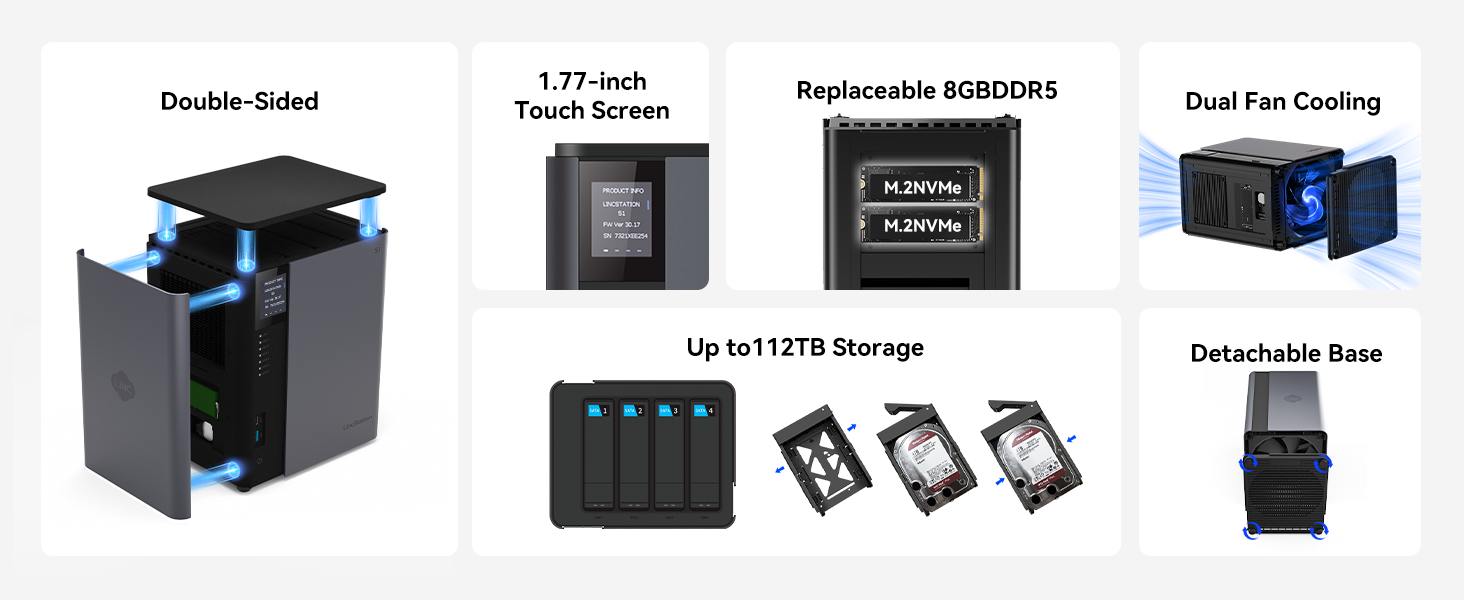

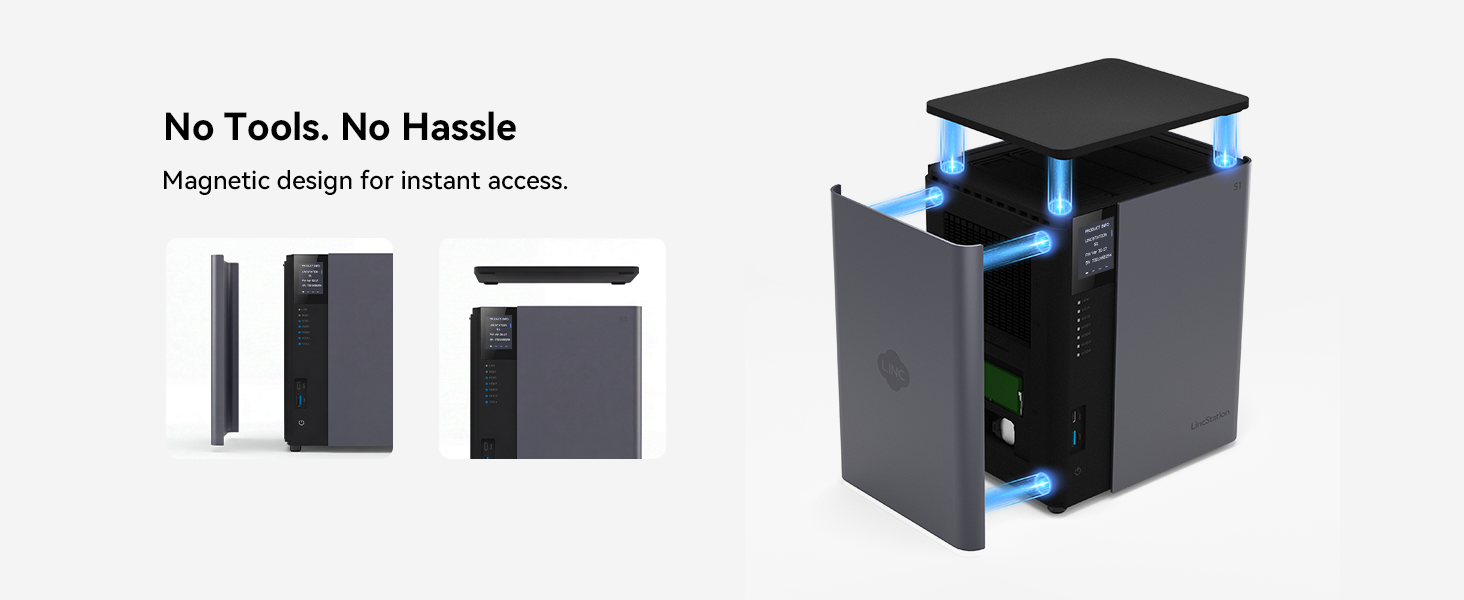

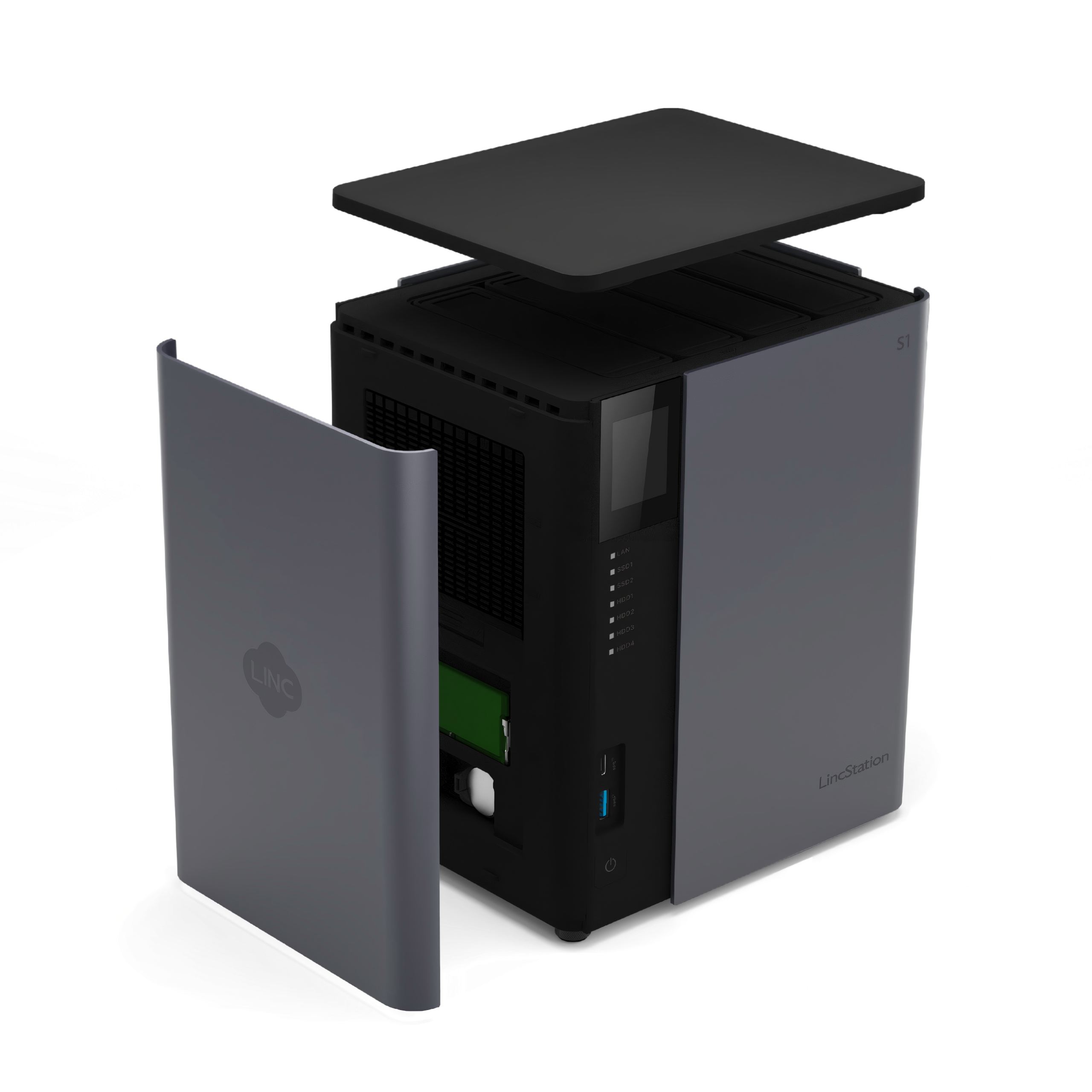

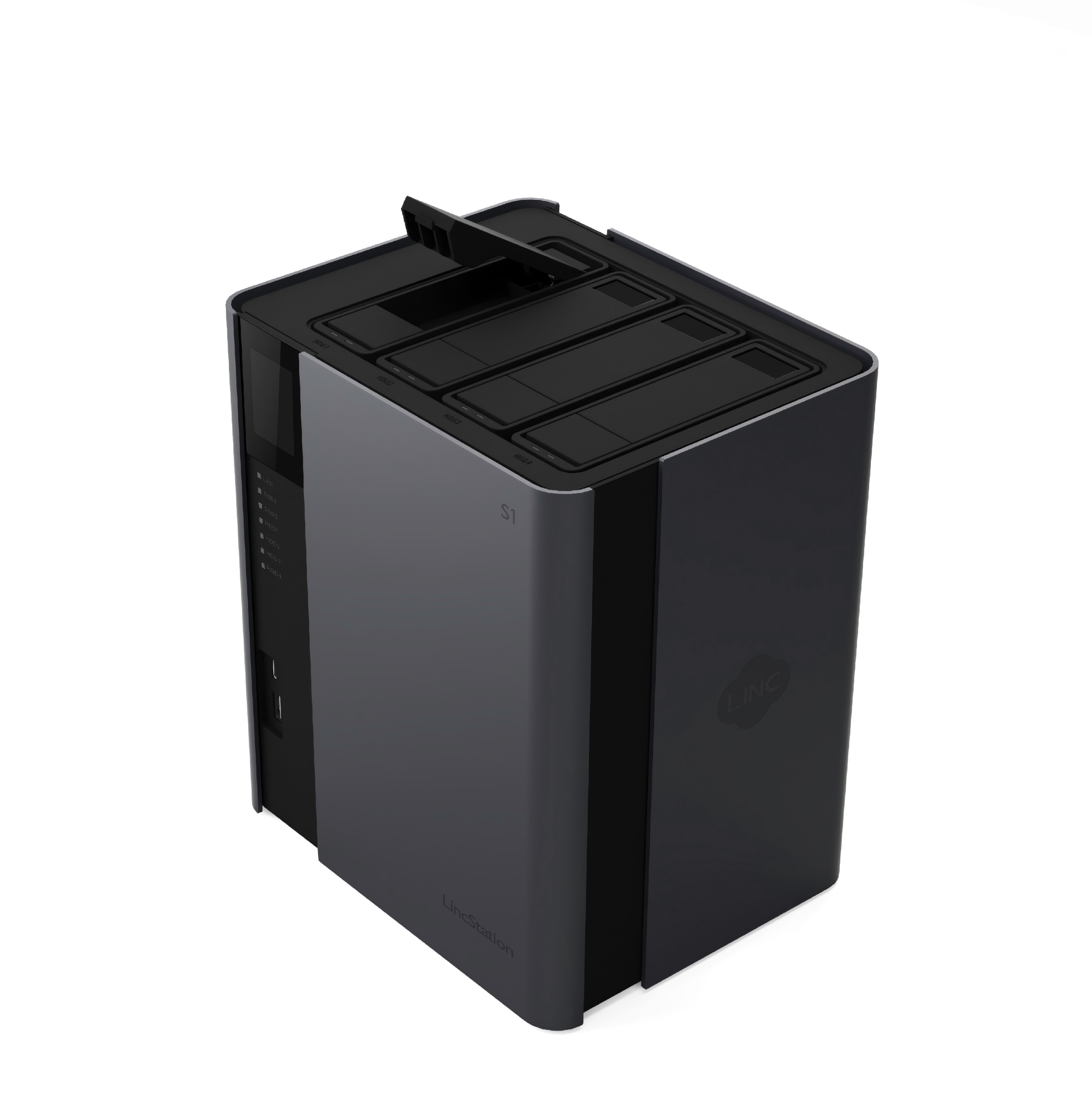

LincStation S1 features a unique tool-free design, allowing you to install or swap drives effortlessly—no screwdriver required.

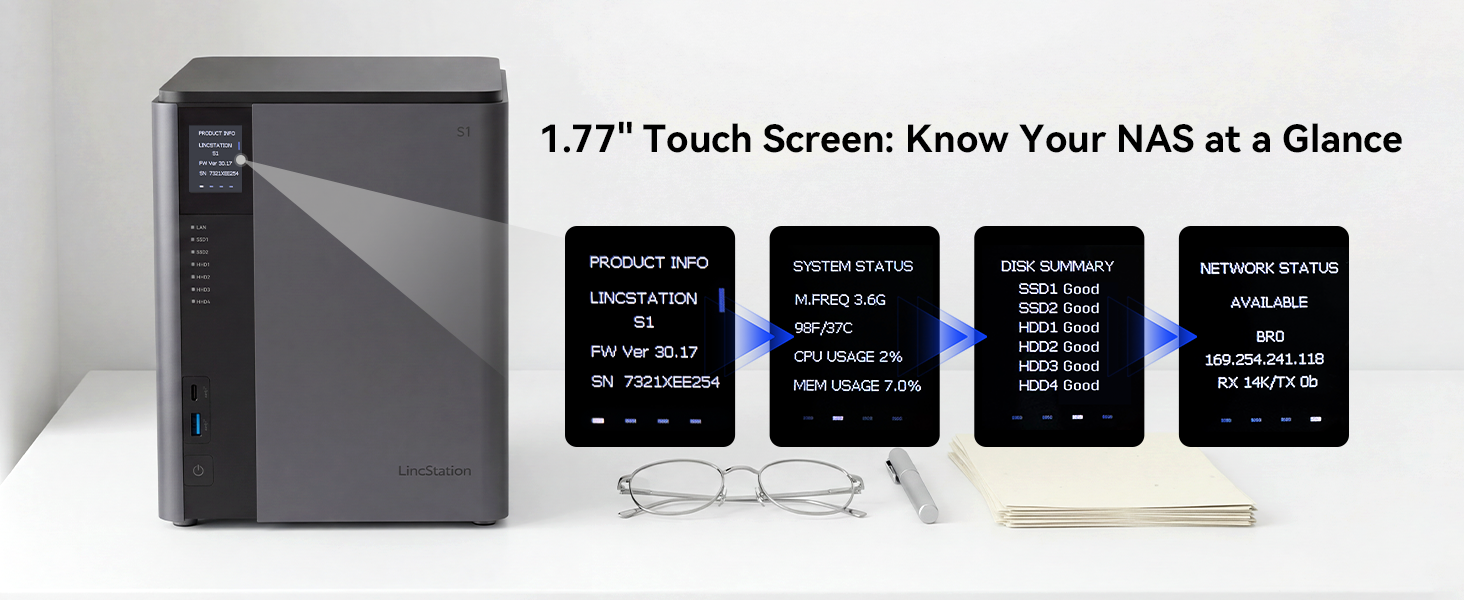

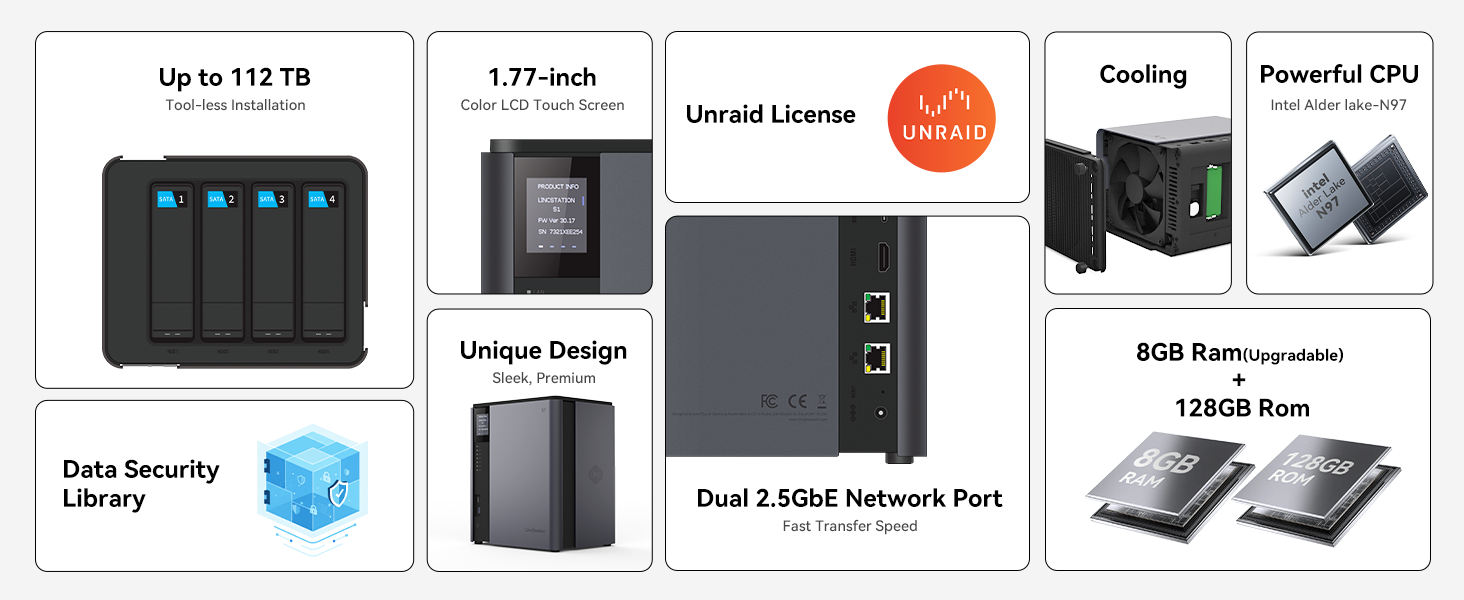

A built-in display and status LED indicators provide real-time system and drive information at a glance, making it easier
than ever to monitor your NAS health and performance.
The LincStation S1 comes pre-installed with Unraid OS. With access to more than 2400 apps—ranging from media servers to
development tools—Unraid makes it easy to build the NAS that fits your needs. Its intuitive web interface, multi-language support,
step-by-step tutorials, and active forums help users of all levels get started quickly and confidently.
Whether you’re a beginner or a power user, Unraid turns your NAS into a fun and flexible hub for storage, streaming, and so much more.

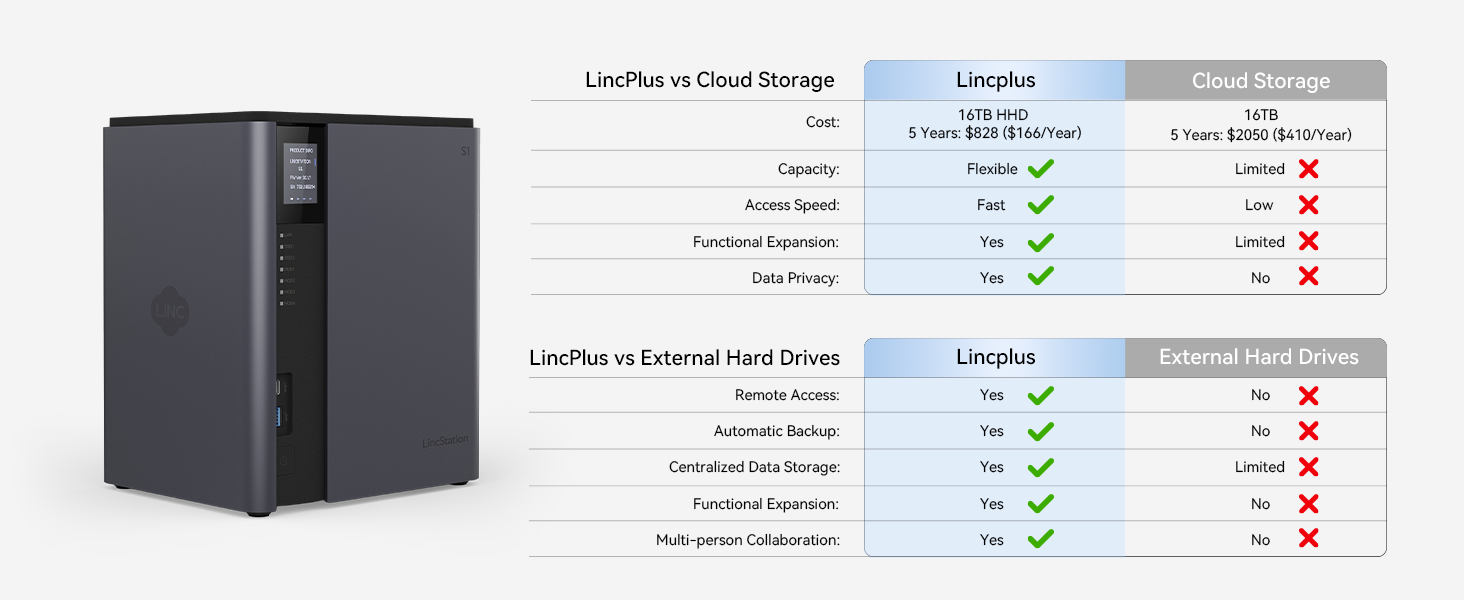

Access Your Files On-the-Go with this Network Attached Storage (NAS) !
Enjoy freedom and security as you effortlessly manage and share data from anywhere with remote access.
Experience the convenience of a portable office – Your world, available anytime.
Specifications
| Items | Description | |
| CPU | Intel Alder lake-N N97 | |
| GPU | / | |
| OS | Linux | |
| Memory | DDR5 SODI MM,8G(Replaceable) | |
| Storage 1 | 128 G eMMC | |
| Storage 2 | 4-bay, SATA3.0 port, Support 2.5 inch/3.5inch HDDs & 2.5 inch SSDs | |
| Storage 3 | 2-bay, M.2 port, Support M.2 2280 SSD, NVMe protocol | |
| Display | 1.77 inch color touch screen | |
| Case | Plastic housing with an aluminum alloy casing | |

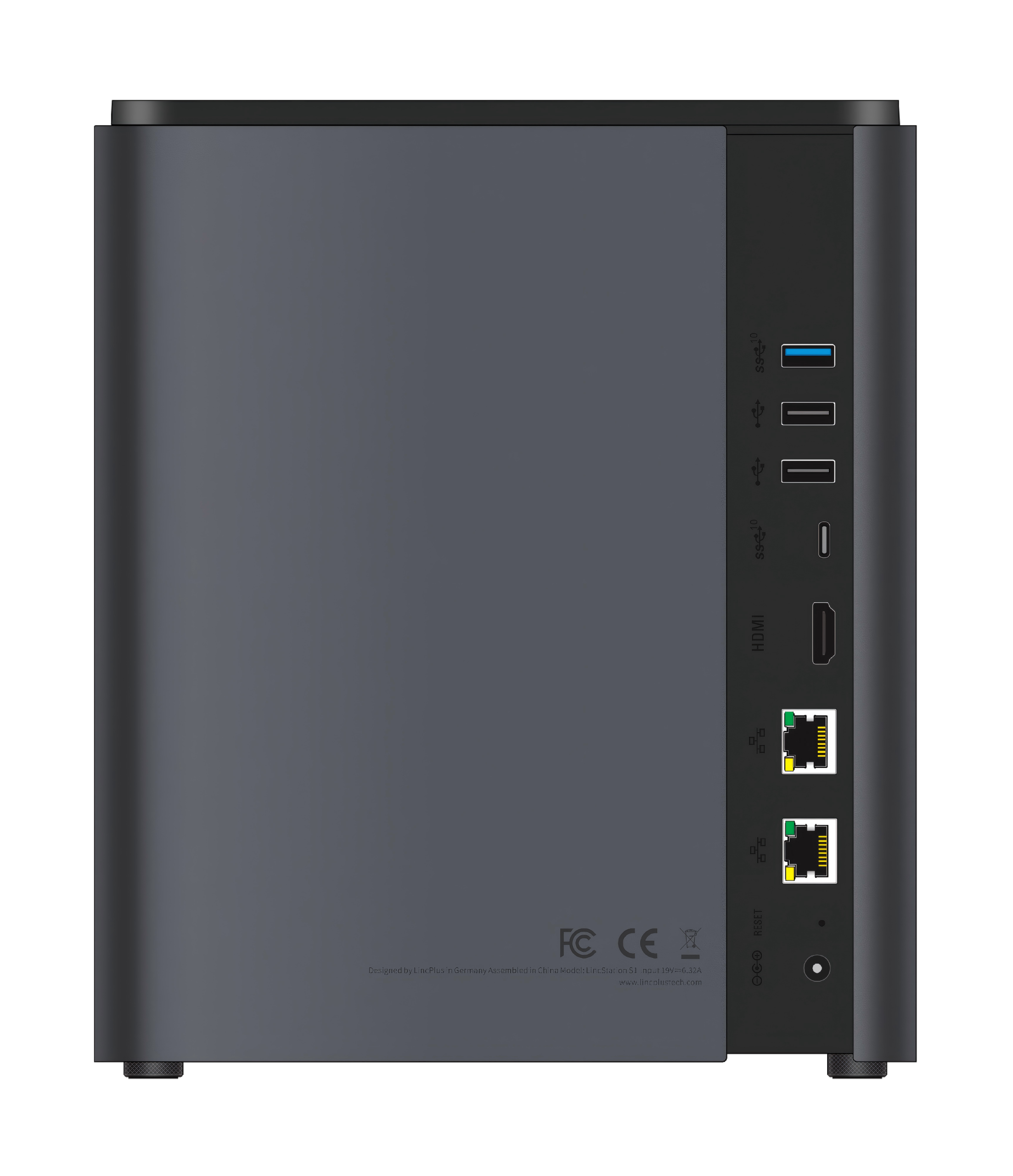

| I/O | USB | 2* USB3.2 gen 2 Type C, 2* USB3.2 gen 2 Type A, 2* USB2.0 Type-A |
| HDMI | 1* HDMI 2.0, TYPE A | |
| DC Port | Yes, φ5.5* 2.5mm | |
| Audio Port | / | |
| Button | Power button*1, Back toggle switch*2 Switch 1#: (2-stage – on/off) for LCD screen. Switch 2#: (3-stage, front/back/off) for indicator light |
|
| RJ45 | 2.5G* 2 | |
| LED | 1* Light strip | |
| Charger | 20V 7A, DC | |
| Battery | 3V RTC battery | |
| Dimension | 7.7″D * 6.1″W *Â 9.1″H | |
| Weight | 2.9KG | |
Access Anywhere
Turn your NAS into a secure personal cloud. Access, share, and manage your files anytime, anywhere.
